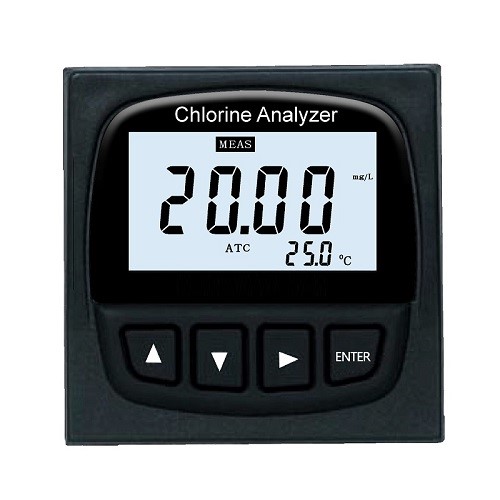

CL-7650 Line Chlorine Analyzer, which is an industrial-line Chlorine measurement and control instruments. Microprocessor controlled intelligent running, feature-rich software with easy to install, strong anti-interference, low maintenance characteristics.

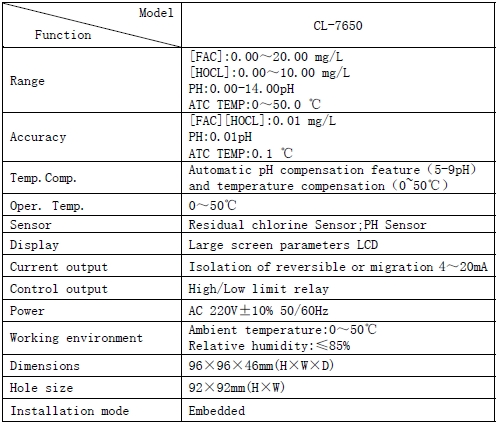

Model: CL-7650
Name: CL-7650 Residual chlorine analyzer
Range: 1)Residual chlorine[FAC]:0.00～10.00 mg/L; 2)Hypochlorous acid[HOCL]:0.00～5.00 mg/L; 3)PH:0.00-14.00pH; 4) ATC TEMP:0～50.0 ℃
Accuracy:1)Free chlorine: ±0.01 mg/L; 2)Hypochlorous acid (HOCl): ±0.01 mg/L; 3)PH value :±0.01pH; 4)Temperature: ±0.1℃
Temp.Comp.:Automatic compensation;
Oper.Temp.:0~50ºC;
Output current:Isolation reversible migration 4～20mA;
Display:Parameter segment LCD;
Current output:Isolation of reversible or migration 4-20mA;
Power Supply: DC 24V;
Control output:High limit, low limit (normally open);
Dimensions:96×96×46mm (height×width×depth);
Working environment: Ambient temperature:0~50℃, Relative humidity:≤85%;
Hole size:93×93mm
Installation mode:panel-mounted.
