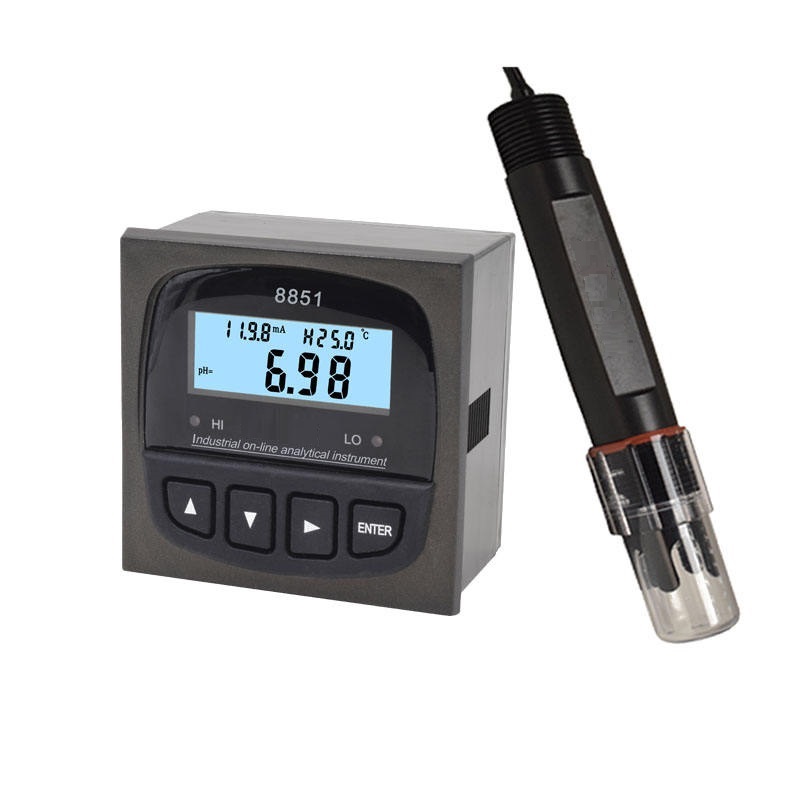

pH/ORP-8851 pH/ORP meter

PH/ORP-8851 pH/Redox Potential Transmitter Controller is a general-purpose, cost-effective online monitoring instrument, which can be equipped with a variety of specifications of two or three composite PH electrodes or ORP electrodes, the whole machine has the characteristics of high measurement accuracy, anti-interference, easy installation and simple operation.
• Enlarged LCD display, multiple parameters can be displayed on the same screen;
• PH supports dual-mode three-point calibration, in line with international standards, 4.00 /6.86 /9.18 or 4.01 /7.00 /10.00;
• PH supports offline calibration and online calibration;
• Support manual correction of measured values; (Manual compensation via PH0 or ORP0)
• 4~20mA output current, support instrument/transmitter dual mode, meet the interface of all (4~20)mA receiving units;
• Dual relay output control, and delay control, to meet the pH or ORP range control and adjustment, can be easily connected with the dosing pump.

Characteristics

Model: pH/ORP-8851

Name: pH/ORP-8851 pH/ORP meter

Measuring range: pH:0~14 pH; ORP: -2000mV~2000mV;

Accuracy: pH:0.01; ORP: ≤±1mV (electronic unit);

Support buffer solution: pH: 4.00/6.86/9.18 or 4.01/7.00/10.00;

Medium temperature compensation range: 0–100 °C Manual/Automatic (NTC10K)

Singal Output: 4-20mA & RS485;

Control Output: High/Low limit dual relay control;

Power Supply: DC24V, Option AC220V,110V;

Working Condition: Ambient temp:0~50℃, Relative humidity≤85%;

Calibration Method: 3-point calibration.

Meter Sizes: 96×96×72mm(H×W×L);

Hole Size: 92×92mm(H×W);

Installation Mode: Embeded.

Product Details
ph meter in chemistry acidity tester orp meter

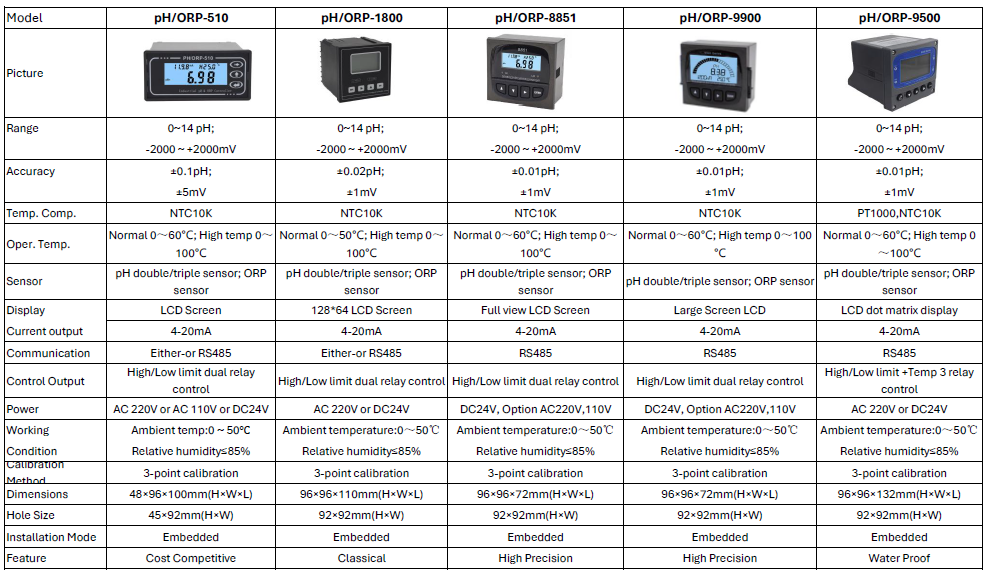

pH/ORP Meter Comparison
