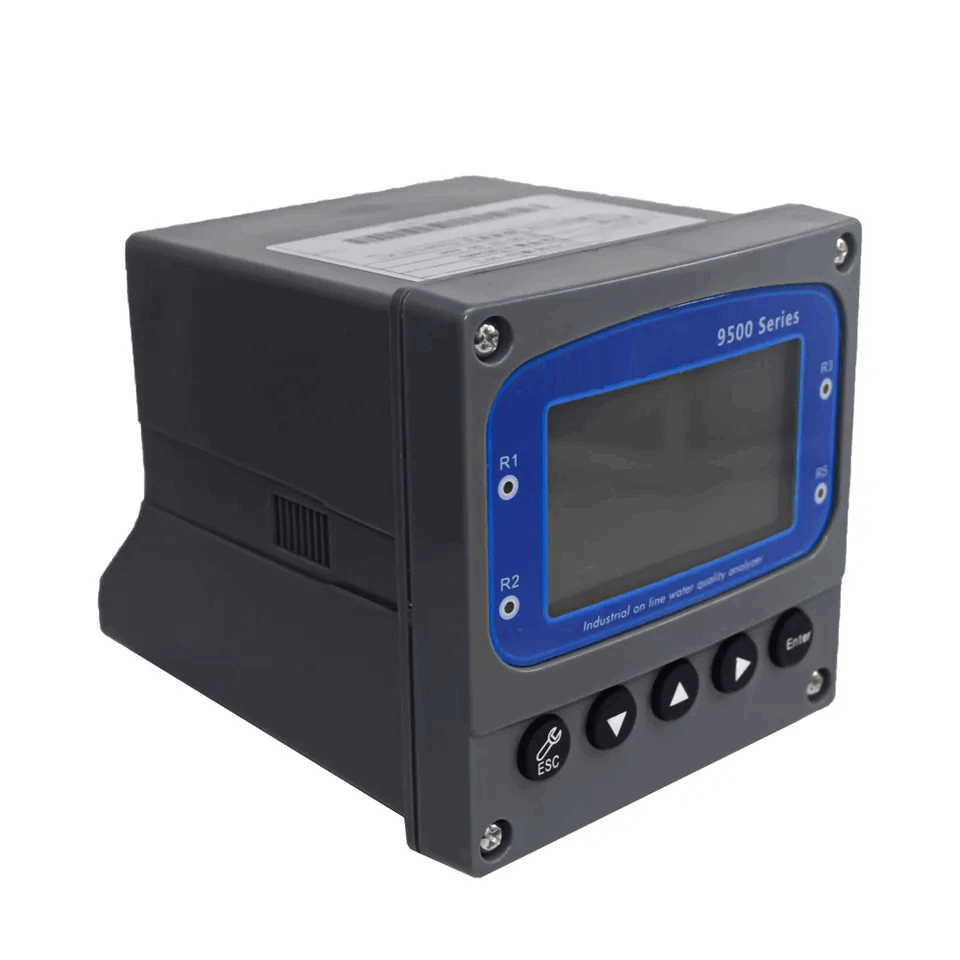

CL-9500 industrial online residual chlorine analyzer is a brand-new residual chlorine water quality analyzer. It is highly intelligent and flexible, capable of simultaneously measuring residual chlorine and temperature. It is widely used in municipal sewage treatment plants, power plants, water supply systems, pharmaceuticals, chemical engineering, food processing, and other industries for continuous measurement of residual chlorine in water.
1. Multi-language support: Standard Chinese interface upon delivery, switchable to an English interface.
2. Temperature compensation options: Three temperature compensation methods are available: PT1000, NTC10K, and manual temperature compensation.
3. 4-20mA output: Utilizes isolation technology for strong anti-interference capability.
4. Three relay groups: High and low setpoints can be freely switched, with adjustable hysteresis to prevent frequent relay switching.
5. Password management function: Prevents accidental operations by non-professionals.
Model: CL-9500
Name: CL-9500 Residual chlorine analyzer
Range: 1)Free chlorine: 0-10.00 mg/L(ppm); 2)Hypochlorous acid (HOCl) :0-10.00 mg/L(ppm); 3)Temperature: 0-50 ℃
Accuracy: 1)Free chlorine: ±0.1 mg/L; 2)Hypochlorous acid (HOCl): ±0.01 mg/L; 3)Temperature: ±0.1℃
Temp.Comp.: Automatic compensation;
Oper.Temp.:0~50ºC;

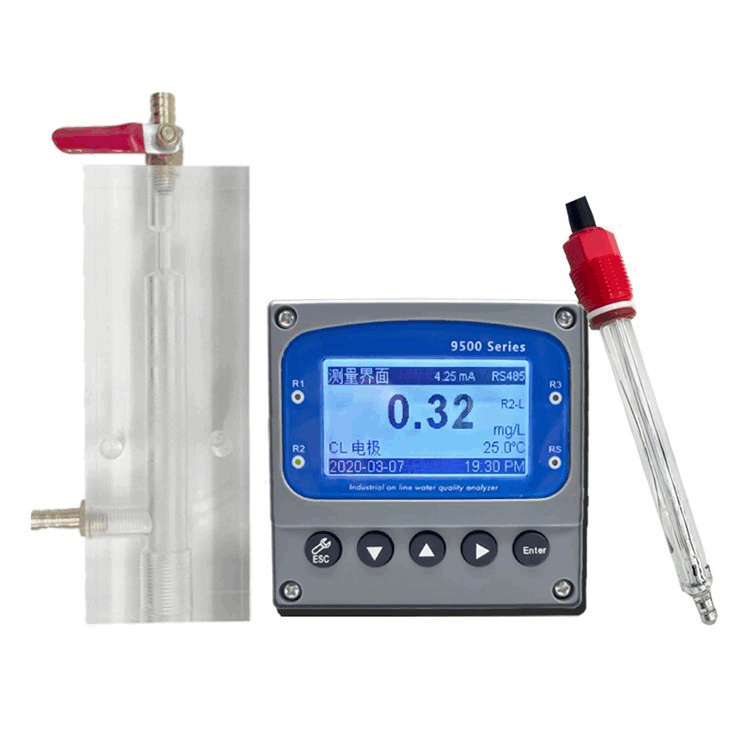

Sensor:Residual chlorine Sensor;
Current output:Isolation 4-20mA
Power:AC 110V±10% 50/60Hz;AC 220V±10% 50/60Hz
Control output:High/Low limit relay
Dimensions:96x96x132mm(HxWxD)
Working environment:Ambient temperature:0~50 c,Relative humidity:≤85%
Hole size:92x92mm(HxW)
Installation mode:Embedded
