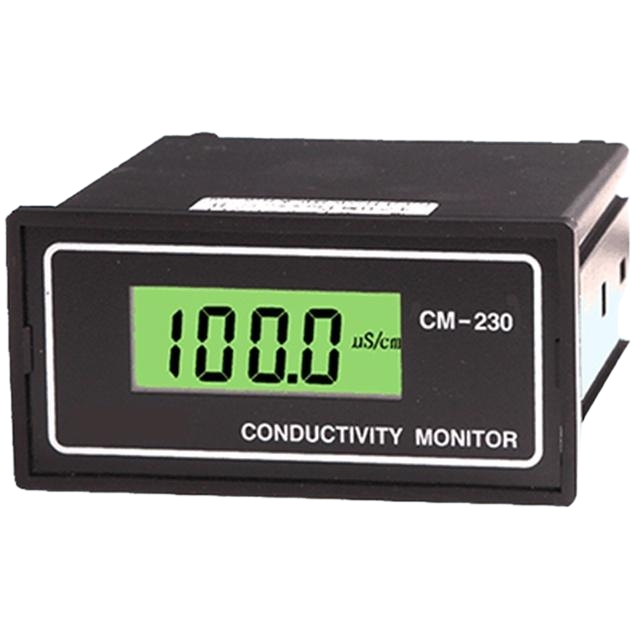

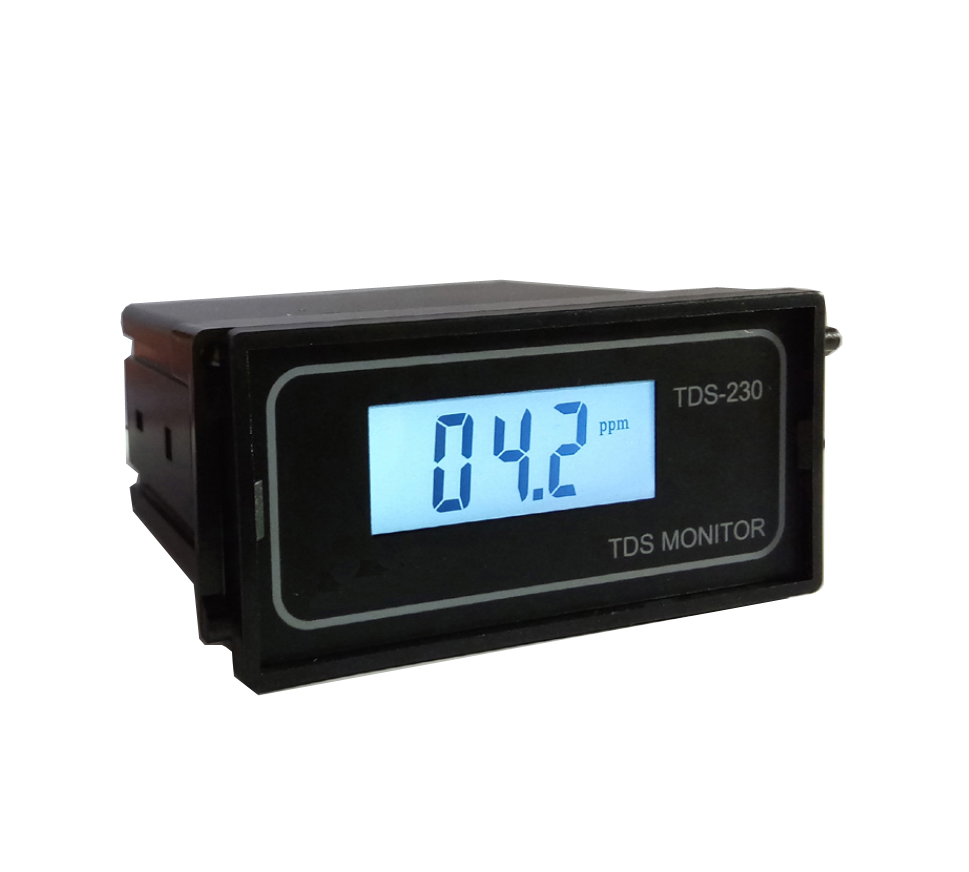

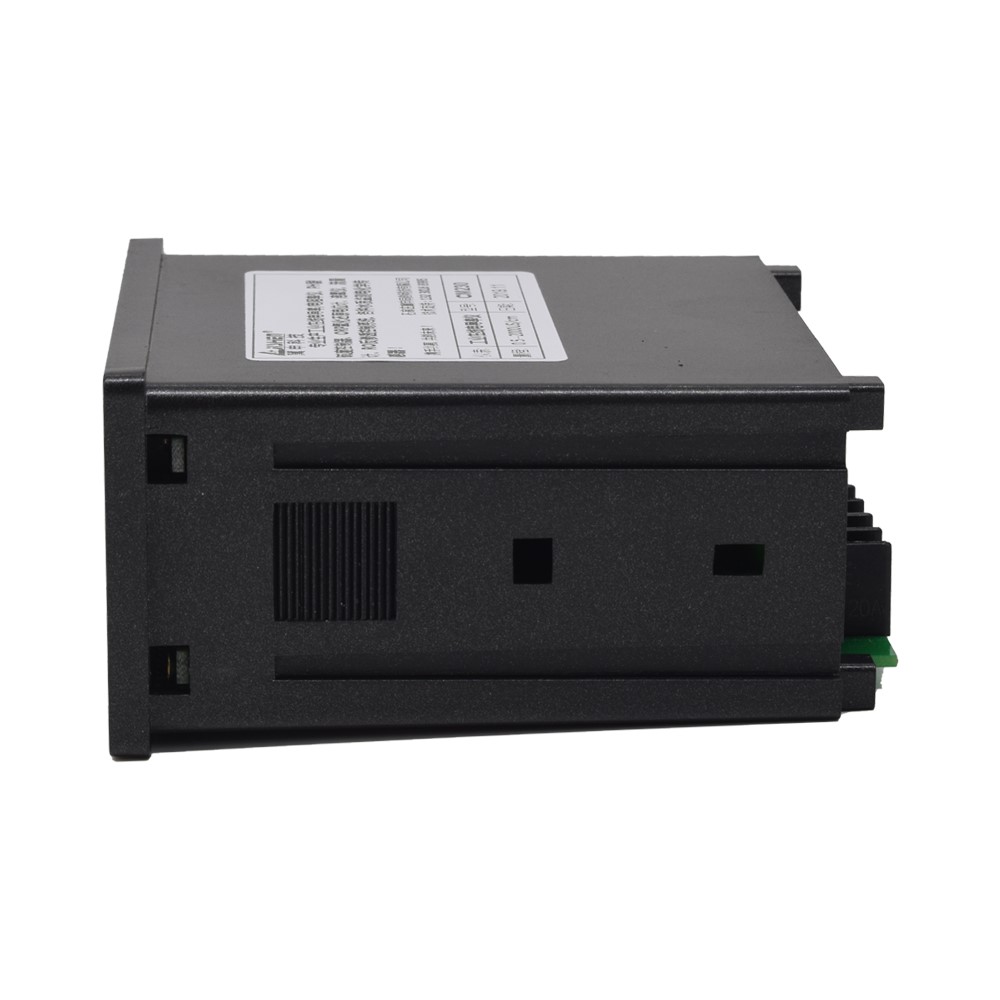

CM-230 Electrical Conductivity Meter TDS-230

This instrument is a panel instrument for on-line monitoring of industrial process conductivity. Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel; unique signal collecting and processing technology and special thick film circuit are adopted to make measurement accurate and operation stable; there are also other features such as linearized data, automatic temperature compensation, not subject to the length change of cable and maintenance-free. It's an ideal auxiliary instrument of various types of small pure water equipment.

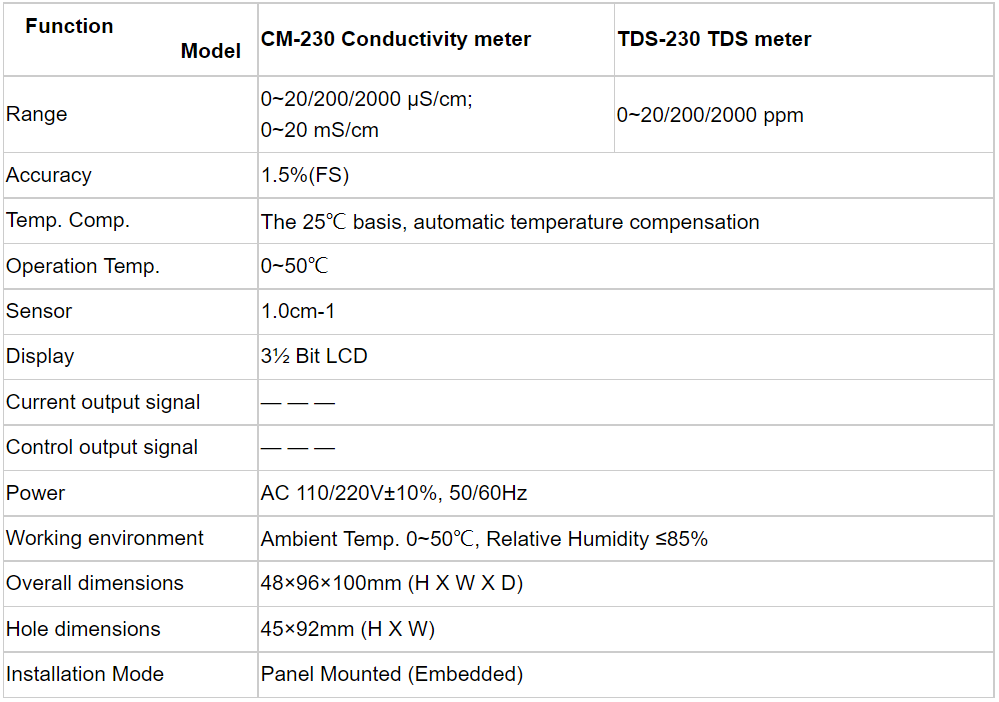

SPECIFICATION

Model: CM-230

Name: CM-230 Electrical Conductivity Meter

Measuring range: 0~20/200/2000ppm

Accuracy: 1.5%(FS)

Temp.Comp.: 25℃ basis,automatic temperature compensation

Oper.Temp.: 0~50℃

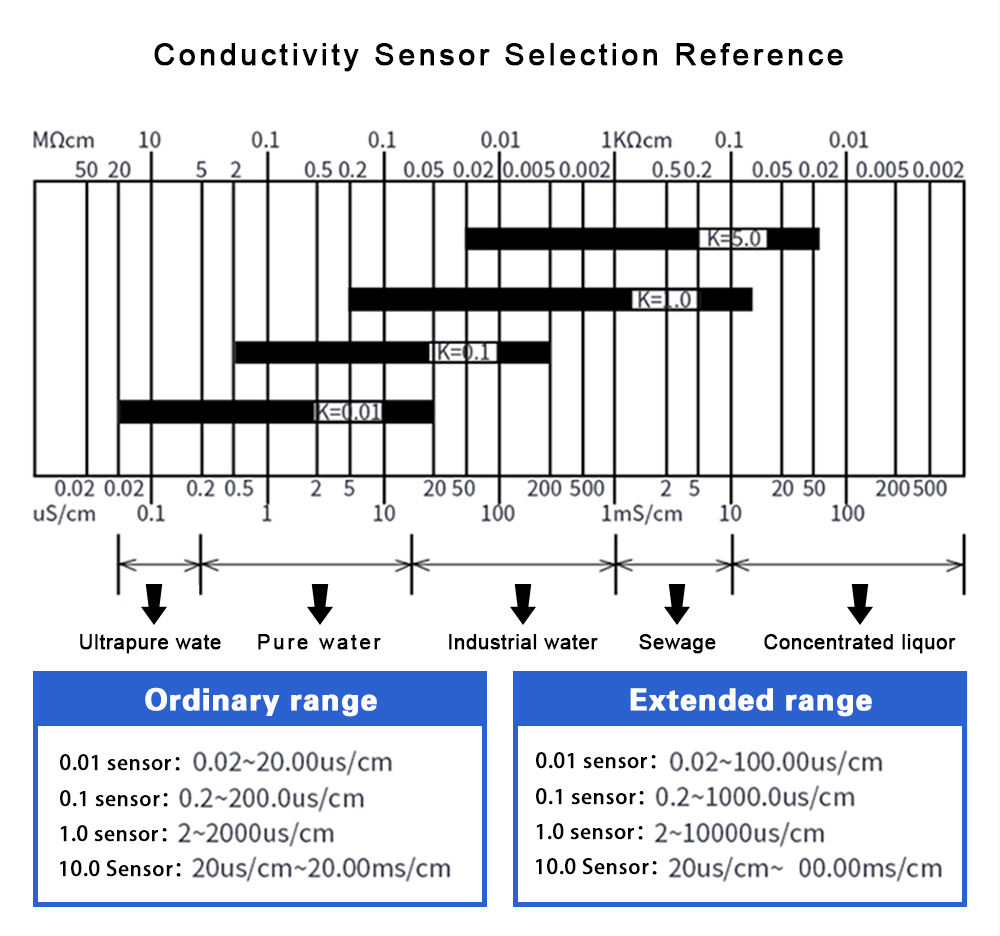

Sensor:10cm-1

Display:3 1/2Bit LCD

Power: AC 110V±10% 50/60Hz; or AC 220V±10% 50/60Hz

Working environment: Ambient temperature:0~50℃; Relative humidity:≤85%

Dimensions: 48*96*100mm

Hole size: 45*92mm
