EC-8851 industrial online conductivity/resistivity measurement and control instrument, integrated with ARM MCU chip, signal measurement in the form of software automatic real-time tracking, to achieve intelligent instrument, so that the measurement accuracy and stability are further improved;
This instrument can be adapted to a variety of conductivity electrodes: 0.01, 0.02, 0.1, 1.0, 10.0cm-1 conductivity electrodes, the measurement range is from 18.25 MΩ (0.05 us) to 100 mS (NTC10K is used for temperature compensation, which can achieve temperature measurement from 0 to 120 °C);
This instrument is widely used in: water treatment equipment, environmental engineering, pharmaceutical, electronics, chemical industry, agricultural planting, aquaculture, scientific research institutes, electroplating, metallurgical manufacturing, mechanical processing and other industries.
Model: EC-8851

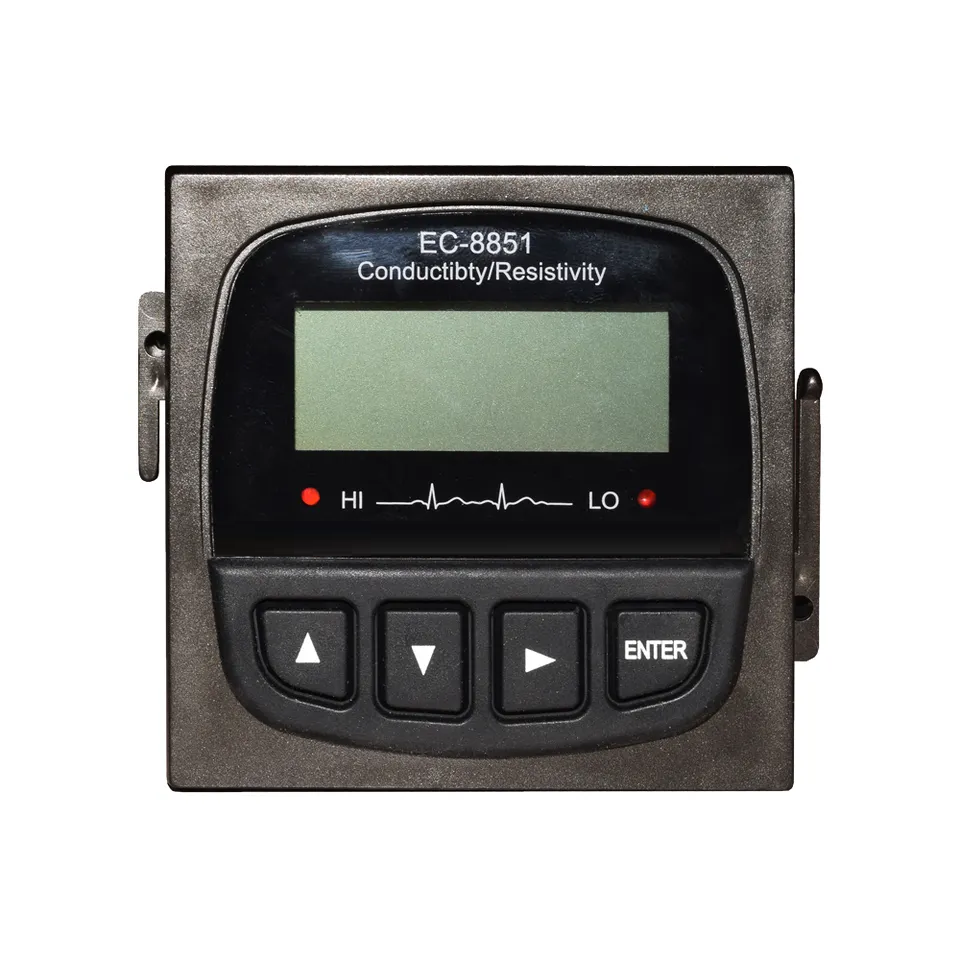

Name: EC-8851 Conductivity/Resistivity Controller
Measuring Range: 0.05~18.25 MΩ; 0~200mS/cm;
Displaying Mode: Full view LCD Screen;
Accuracy: 1.5%(FS);
Current Output Signal: 4-20mA, RS485;
Control output signals:High/Low limit dual relay control
Medium temperature: normal temperature electrode: 0~60°C; High temperature electrode: 0~120°C;
Medium pressure: less than 0.5MPa;
Temperature compensation: 25°C as the benchmark, automatic compensation;
Working Condition: Ambient temp:0~50℃, Relative humidity≤85%;
Power supply: AC 220V or DC24V
Outline dimension: 96×96×72mm(high×width×depth)
Hole size: 92×92mm(height×width)
Installation: Embedded
